Steel structure Pedestrian overpass project
The steel structure project features an arc-shaped bridge structure, with a single-span main bridge and an I-shaped top. The structure utilizes steel box girders with cross-sectional dimensions of 3800 x 1400 mm. The standard section of the main bridge’s box girder has a top width of 3.8 meters, widening to 11 meters at both ends. The base width is 1.34 meters, and the box girder height is 1.4 meters. The total length is 37 meters. Each individual component is 27 meters long, 6.8 meters wide, and weighs 60 tons. Despite the challenges of transporting extremely long and wide components and challenging urban construction conditions, the project was successfully completed ahead of schedule. This project not only effectively alleviates traffic pressure in the surrouding area but also becomes a beautiful landmark.
Whatsapp:0086 13793251081,
Email:gloria@steelstructurechina.com

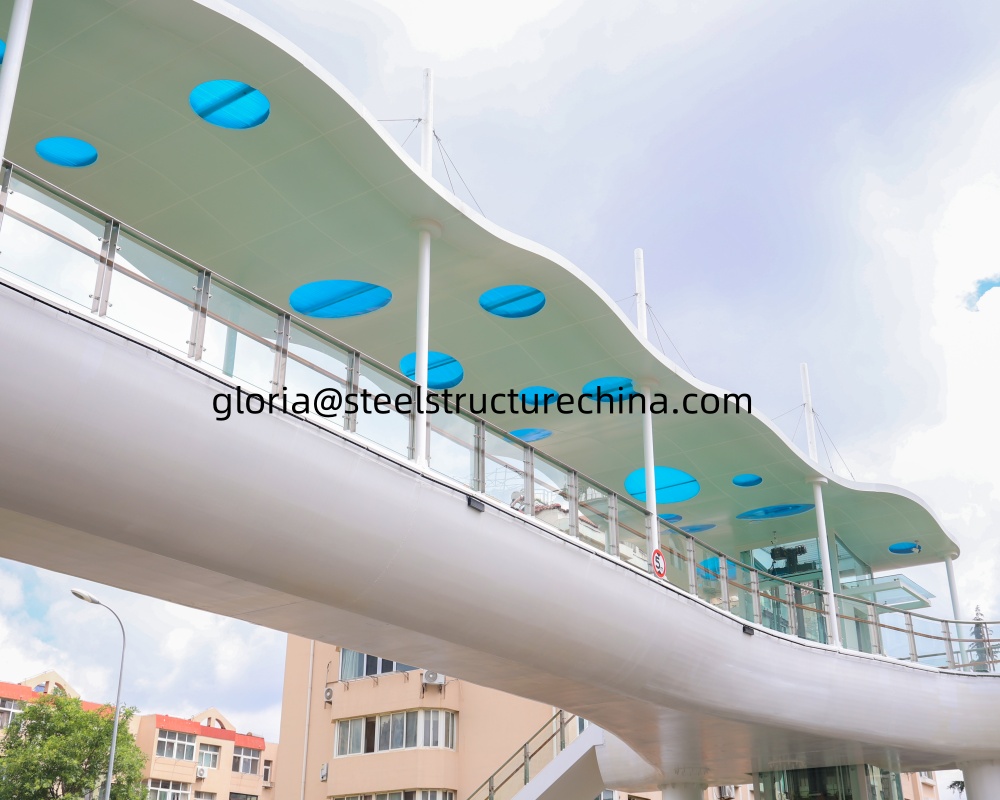

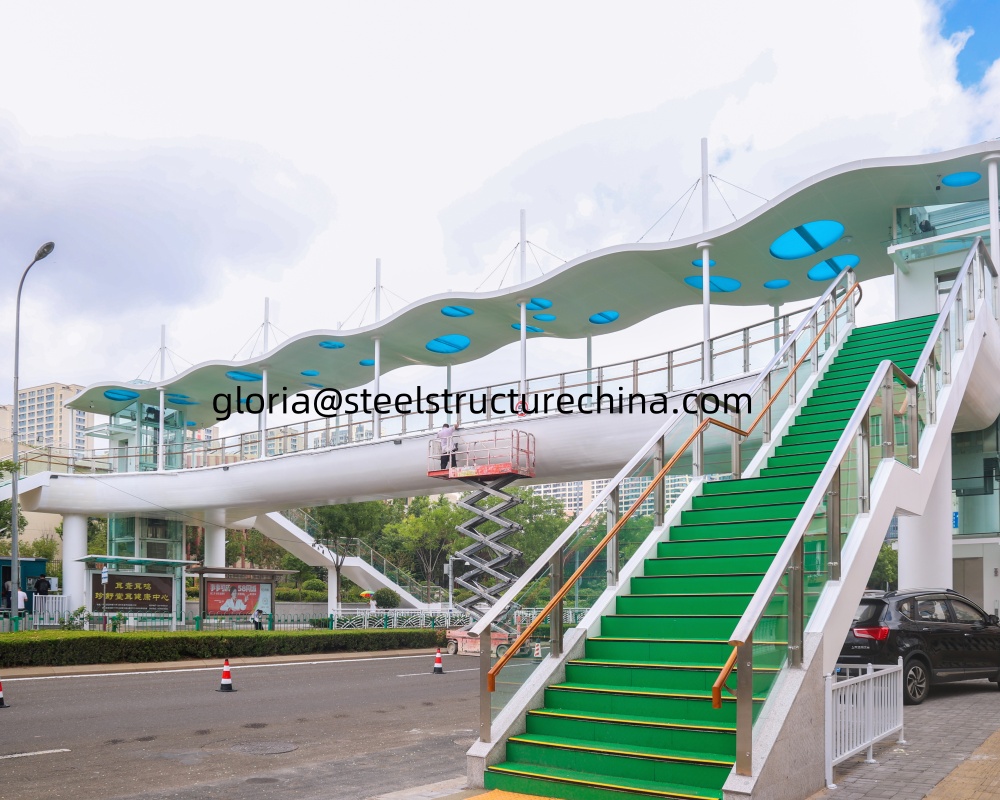

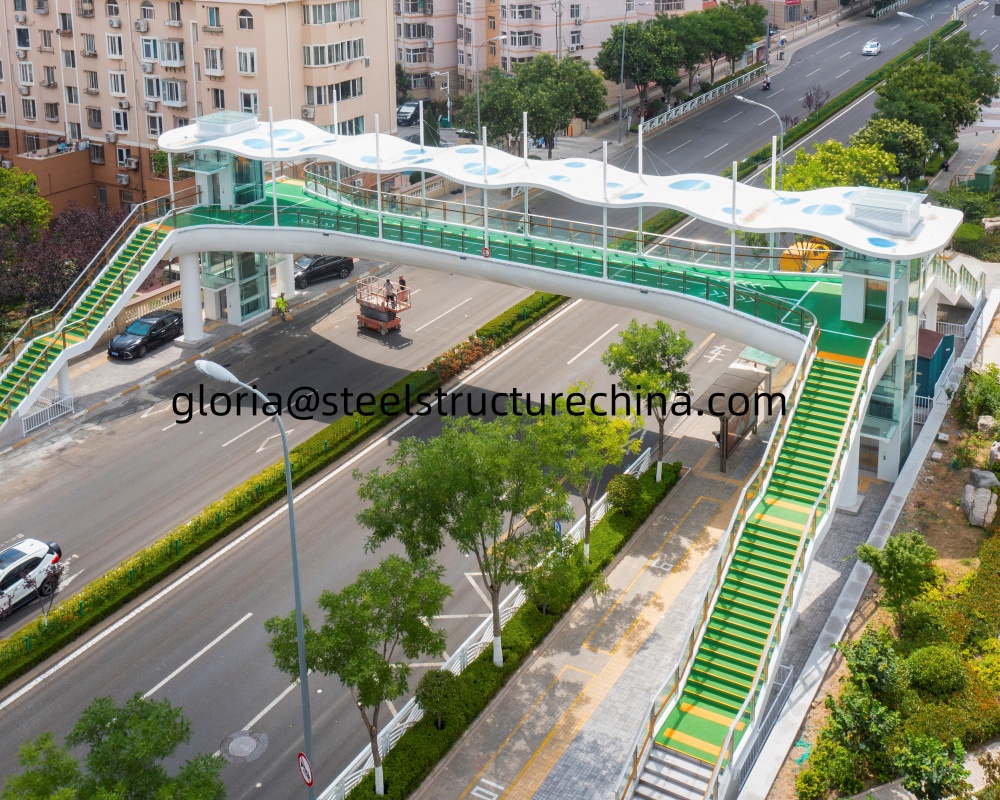

The steel structure project has recently been successfully completed, and the pictures are as follows:
If you have any similar requirements about prefabricated steel structure project,kindly pls feel free to contact with me,you will satisfy with our price,quality,profession very well:
Whatsapp:0086 13793251081
Email:gloria@steelstructurechina.com
Other steel structure project pictures for your reference:
We put much fund in introducing advanced production lines of sandwich panels, corrugated steel sheets, H section steel, C/Z section steel, EPS foam board and EPS packing machines. Our company has well-trained processing teams, advanced technical equipment, professional quality inspection teams and mature management policies in each link, which can effectively ensure the quality of products, but also an important factor to reduce the cost of our products.
Our factory is a professional steel structure manufacturer in China. We are capable in taking over all types of steel structure building, such as steel structure warehouse, steel structure workshop, poultry house and so on, which contains all step of designing, producing, installing.
Our factory was founded in 1997, our products have been exported to more than 80 countries all over the world. Besides, we have strong engineering teams of 60 senior engineers.
We are a group factory of 5 branch factories and we can produce all accessory materials of steel buildings by ourselves.
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shipment.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you offer designing service for us?
A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office mansion, supermarket, auto dealer shop, shipping mall,
hotel.
Q: Can you provide the installation help?
A: We will provide detailed instruction photos and videos to you. If it is necessary, we will send professional engineers to do the construction guidance, and some skilled workers to help installation.
